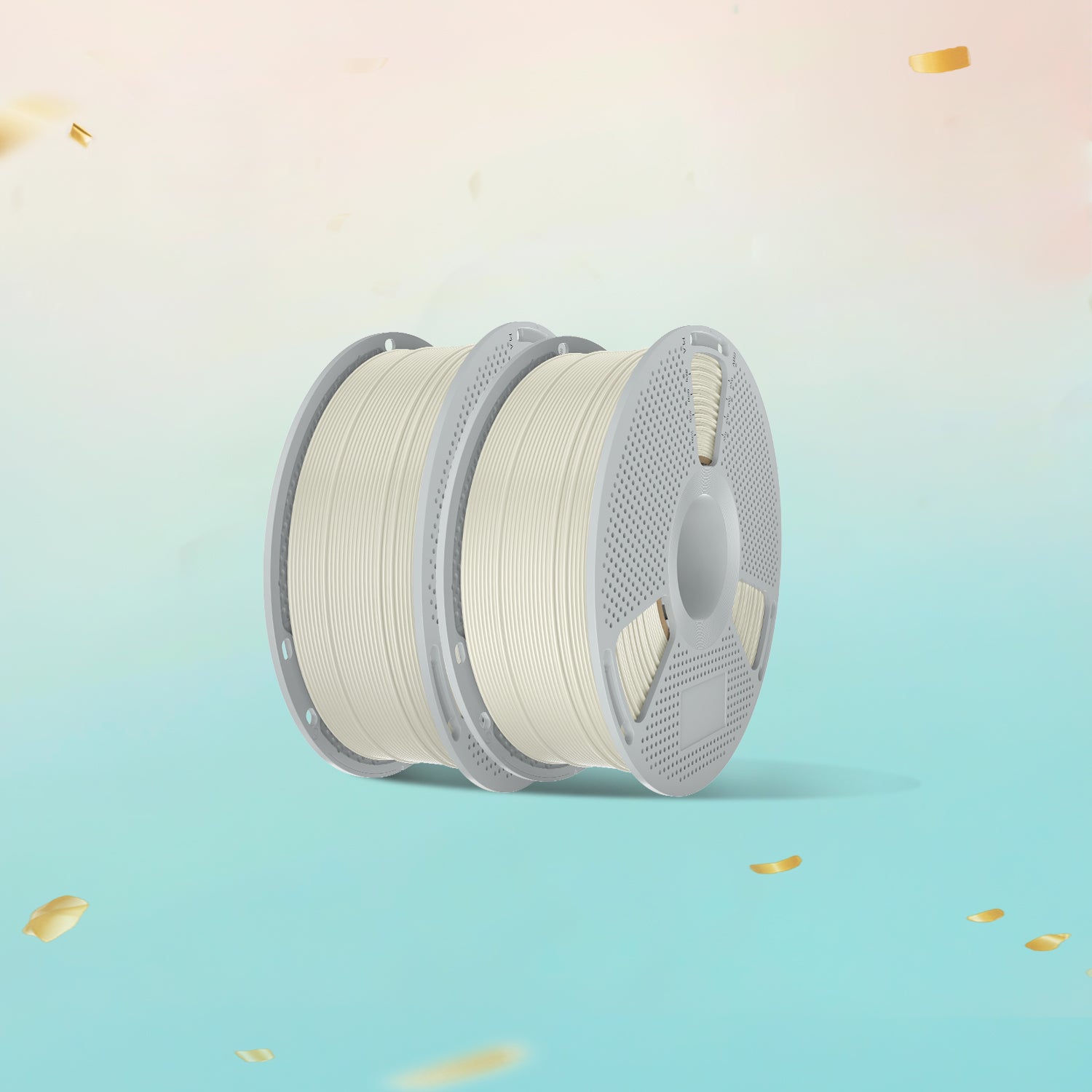

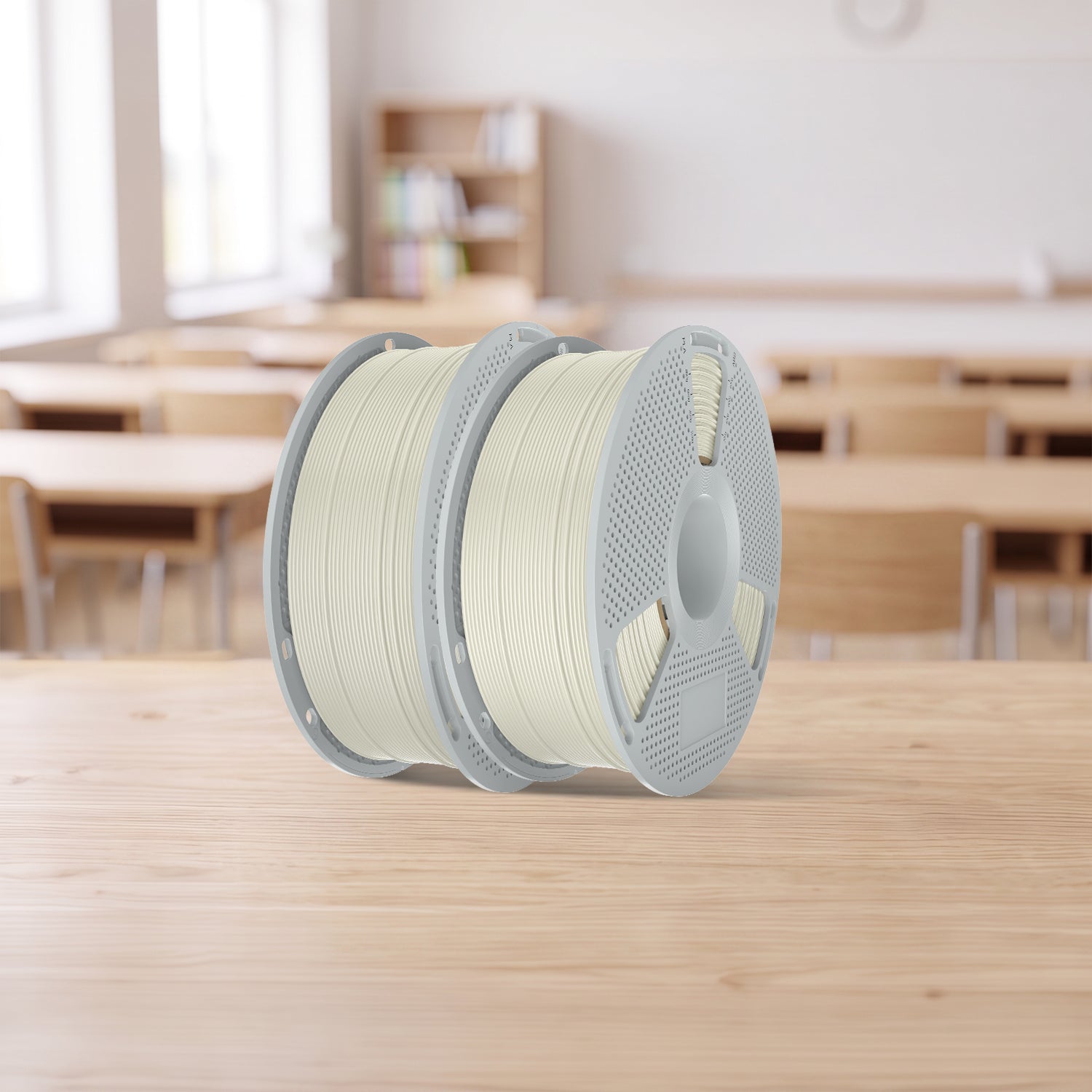

ABS-GF (ABS Glass Fiber) 3D Printer Filament 1KG
Couldn't load pickup availability
Key Features
- Glass Fiber Reinforced Strength
10% glass fiber boosts ABS strength and rigidity for heavy-duty functional parts. - Warp-Free, Strong Layer Bonding
3D fiber anchoring improves interlayer adhesion, reducing warping and cracking. - Heat-Resistant & Industrial-Grade
Enhanced thermal stability for automotive parts and high-temperature applications.
Diameter: 1.75±0.03mm
Printing Temperature:
- 260-280℃：50-300mm/s
Bed Temperature:
- 90-100℃: apply glue
Bubbles: 100% zero bubbles
Net Weight: 1 kg/spool
Gross Weight: 1.3 kg/spool
Length: 1.75 mm (1 kg) ≈ 350 m
- Free shipping to most of USA, EU, UK, CA and AU regions
- Guaranteed Secure Checkout
SUNLU ABS-GF Filament
Facing industry pain points such as weak interlayer bonding, warping, and limited mechanical performance in traditional ABS materials, SUNLU Engineering Lab introduces the revolutionary ABS-GF Glass Fiber Reinforced material, providing the ultimate solution for professional users and industrial applications.
Breaking through the limitations of interlayer bonding in traditional ABS, a three-dimensional anchoring network is formed through glass fibers. Randomly distributed fibers act like micron-level chains, mechanically locking adjacent printed layers into a single unit, ensuring absolute structural integrity even in the most complex geometric designs.
Innovatively utilizes glass fibers to construct an efficient heat conduction network, achieving uniform heat distribution throughout the printing process. Internal temperature rise speed is reduced by 30%, ensuring each layer cures evenly and completely eliminating warping and cracking caused by thermal differential stress.
Optimized thermal stability makes it the ideal choice for high-temperature applications such as automotive components, functional prototypes, and industrial tools. Maintains dimensional stability and mechanical performance even under sustained high-temperature conditions.
Achieving leaps beyond standard ABS: flexural strength increases by 63% to 90MPa, tensile strength improves by 28.5% to 54MPa. The 10% glass fiber reinforcement not only enhances structural rigidity but also forms a thermal conduction network, significantly increasing heat deflection temperature.
| Recommended Printing Settings | |
|---|---|
| Drying Settings (Blast Drying Oven) | 80℃ |
| Printing and Keeping Container's Humidity | < 20% RH (Sealed, with Desiccant) |
| Nozzle Temperature | 260-280 °C：50-300mm/s |
| Bed Temperature (With Glue) | 100-110℃ |
| Printing Speed | 260-280 °C：50-300mm/s |
| Physical Properties | |
|---|---|
| Density | 1.016 g/cm³ |
| Vicat Softening Temperature | 95°C |
| Heat Deflection Temperature | 104°C |
| Melting Temperature | 148°C |
| Melt Index | 22 g/10 min |
| Mechanical Properties | |
|---|---|
| Tensile Strength | 54 MPa |
| Breaking Elongation Rate | 10% |
| Flexural Strength | 90 MPa |
| Flexural Modulus | 3490 MPa |
| Impact Strength(X-Y) | 6.7 KJ/m² |
